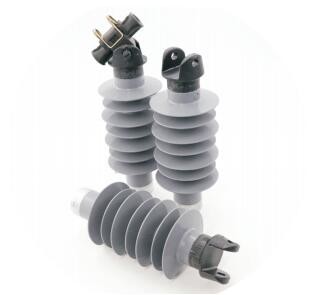

PA6 insulator with screw clamp
General data
• Specified cantilever load (SCL): 15 kN
• Ambient temperature range: T = -60 °C … +85 ºC
• Coat: silicone HTV
• Silicone colour: grey
• Material of top fitting: PA6, UV stabilized
• Material of steel end fitting: HDG steel
• Connector thread on bottom: M20 or M24
• Average layer of zinc: ≥ 85 µm
• Tested according to standards: IEC 62217, IEC 61952
PA6 Post Silicone Rubber Insulator
PA6 insulator without a clamp
| Type | Rated Voltage (kV) | Specified Mechanical Load(SML) (kN) | Leakage Distance L(mm) | Dry Arcing Distance (mm) | P.F. Withstand Voltage Min,Wet (≧kV) | Lightning Impulse Withstand Voltage (≧kV) |
| IPS 15-24-600 | 24 | 15 | 587 | 270 | 65 | 155 |
| IPS 15-24-700 | 24 | 15 | 716 | 265 | 75 | 175 |
| IPS 15-38-870 | 38 | 15 | 945 | 305 | 85 | 185 |
| IPS 15-38-1100 | 38 | 15 | 1153 | 365 | 105 | 250 |
PA6 insulator with spring clamp
| Type | Rated Voltage (kV) | Specified Mechanical Load (SML) (kN) | Leakage Distance L(mm) | Dry Arcing Distance (mm) | P.F. Withstand Voltage Min,Wet (≧kV) | Lightning Impulse Withstand Voltage (≧kV) |
| IPS 15-24-600-FC | 24 | 15 | 565 | 265 | 70 | 175 |
| IPS 15-24-700-FC | 24 | 15 | 695 | 265 | 75 | 175 |
| IPS 15-38-870-FC | 38 | 15 | 923 | 305 | 85 | 185 |
| IPS 15-38-1100-FC | 38 | 15 | 1131 | 365 | 105 | 250 |
PA6 insulator with screw clamp
| Type | Rated Voltage (kV) | Specified Mechanical Load (SML) (kN) | Leakage Distance L(mm) | Dry Arcing Distance (mm) | P.F. Withstand Voltage Min,Wet (≧kV) | Lightning Impulse Withstand Voltage (≧kV) |
| IPS 15-24-600-SFC | 24 | 15 | 567 | 265 | 65 | 155 |
| IPS 15-24-700-SFC | 24 | 15 | 695 | 265 | 75 | 175 |
| IPS 15-38-870-SFC | 38 | 15 | 923 | 305 | 85 | 185 |
| IPS 15-38-1100-SFC | 38 | 15 | 1131 | 365 | 105 | 250 |
